Mechanical infantry man part 1

Meet the Mechanical infantry man, the 2 man version is better known as the Praying Mantis but this 1 man version was build couple of years earlier.
In 1937 EJ Tapp working for County Commercial Cars patented a system of a small tank where a small armored box that could be raised to shoot over obstacles, in 1941 the first version was build, sometimes called Praying Mantis mark 1 but more correct the Mechanical infantry man, the driver was prone with 2 Bren guns (lewis in the patent) in a sort of overhead turret, the idea was really clever but as with all 1 man tanks it was to much for 1 man to handle, drivers complaint about getting seasick as well which is no wonder wen you see the videos of these thingy it goes all over the place, I think they did try to fix that as in 1 clip there is 2 extra bars or more likely pneumatic cylinders going from the front too the box. ooh forgot it was driving with the feet.
Later in 1943 the Praying Mantis was build, based mostly on the Universal carrier, this 2 man version was canceled in 1944, David Fetcher explains it far better then me so see the video below for that.



patent drawing, sadly the end result looked a fair bit different and was not of much use









David Fletcher did a nice but sadly short video about the Praying Mantis version
more later
as always feel free to comment
Greetings Mondria

Friday, September 1, 2017

Russian parachute tank

Going forward with my love for funky 1 man tanks, today its a Russian parachute tank funky design which looks a bit like a shorted BT.
This is the info I found for it translated from a Russian source

The last name of the creator of this invention remains unknown, as does the precise date of its creation, but it can be narrowed down to around 1942-1943. This was a tank meant for airborne troops that could be dropped by parachute. The project was ahead of its time, as similar vehicles were built later.

The design was very well thought out and included calculations of the mass of the hull, components, assemblies, and armament. In addition to the weight of the vehicle, the size of the parachute was also calculated.

The proposed tank carried only one crewman. It would be equipped with a mass produced 100 hp M-11G engine, the same as the one used on the Po-2 airplane. The armament consisted of a 47 mm semiautomatic cannon and a DT machinegun. The armour was also reasonable: 30 mm in the front, 20 mm roof and sides, 10 mm floor, 25 mm rear. The total weight of the fully equipped tank, include the crewman, was around 2600 kg."Parachute tank"


This is 1 of the few 1 man tanks with anything more then a machine gun, this will overtax the single crew member even more then other design but giving the limits of aircraft loads there is not much choice. What the drawings does not make clear is how the power was going to the wheels, there is no real sprocket or a gearbox shown, this could be in other drawings or someway inside the suspension arms, which are big for just suspension arms and the front wheels does have something drawn there but I'm not sure what that would be and looks more a way to steer. A 100hp engine is a bit overkill for a 2600kg tank, half would do fine and save a lot of weight, I think the designer picked this because it was a aircraft engine and maybe that was good for a airborne tank, bit weird.


Drawing original posted by Yuri Pasholok
In my model I did change a few things
-changed the 47mm, which looks more like a French gun in the drawings then a Russian gun, to a 45mm gun, followed the 45 mm tank gun model 1932 (20-K) design as that was the standard caliber of the time.
-added a view port in the front, simple design close to what was used on the T-60 and BA-64.
-added a engine hatch with a couple of bolts and a exhaust to the rear.
-not sure yet if I will add tracks, drawings does not show any, left off to save weight? But BT tracks would fit the looks of this little machine. The sides look a bit plain and not sure yet if I will add something there maybe tracks storage.





I did made a mistake with the MG but that is fixed now, changed it from a infantry DP MG to the tank MG the DT

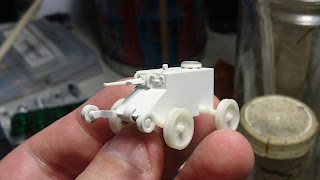

For the model I started with a fast build 1/100 BT kit from Zvevda, it looked a lot like it but just smaller, plus the kit was really cheap so no worries if I cut it up and made mistakes, well that did not turn out well the wheels where much smaller then I needed them to be and the nose was more work to fix then just starting from scratch, so that is what I did, made myself a set of wheels close to the BT wheels just without the holes in the rubber, the hull is a simple box and was also pretty easy to make, gun barrel was made out of 3 pieces of round stock, I followed the dimensions of a metal barrel I had but as that had an extra step, armored sleeve, it was of no use for me.

EDIT: Yuri saw my post on FB and posted more info including a drawing with measurements and as I geusstomedeted my size it a bit off, height and width are pretty close less then 0,5mm off but the length is off by more mostly in the nose mine is too pointy, more over at his blog
https://yuripasholok.livejournal.com/9361162.html
Thanks for watching and feel free to comment
Greetings Mondria
